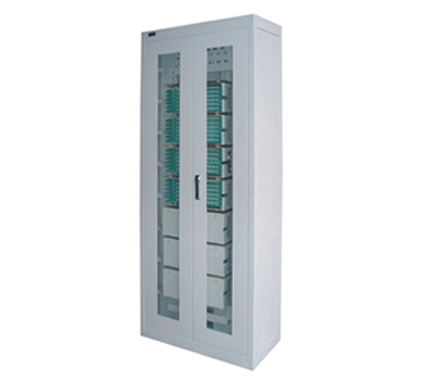

GPX01-A series of fiber optic distribution frame (ODF) Technical Note



GPX01-A Series Fiber Distribution Frame (ODF) for distribution to end optical fiber communication systems and central office trunk cables , and can be easily connected to fiber-optic lines , allocation and scheduling, fiber optic cable and optical communications equipment wiring connected devices .



1 standard

( 1 ) Fiber Distribution Frame YD/T778-1999

( 2 ) 19 -inch panel and rack size IEC297-1

( 3 ) 19-inch rack IEC297-2

( 4 ) electronic equipment mechanical structure IEC917

( 5 ) fiber optic connectors GB/T12507-1990



2 Performance Indicators

2.1 fiber optic connector ( with adapter and pigtail )

( 1 ) Insertion loss : ≤ 0.2dB

( 2 ) Connector loss ( including insertion , exchange and repetition ): ≤ 0.5dB

( 3 ) Return loss : PC ≥ 40dB UPC ≥ 50dB APC ≥ 60dB

( 4 ) Durability plug life:> 1000

2.2 high voltage protective grounding

Between ( 1 ) Rack rack protection grounding device and the pressure of not less than 3000V (DC) / 1min no breakdown , no arc .

( 2 ) high-voltage protection between the rack and the rack grounding insulation , the insulation resistance of not less than 1000MΩ/500V (DC).

2.3 Conditions of Use

( 1 ) Operating temperature : -25 ℃ ~ +40 ℃

( 2 ) Relative humidity : ≤ 85% (+30 ℃ pm)

( 3 ) Atmospheric pressure : 70Kpa ~ 106Kpa

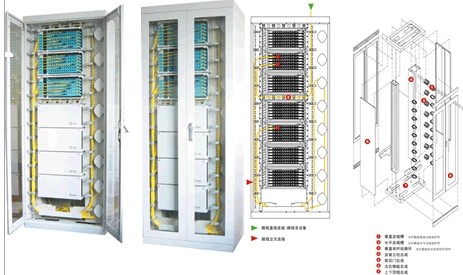

3 . Structural features

(1) GPX01-A series of fiber optic patch panels and sub- frame: 19 " international standard installation interface ; surface using electrostatic spray coating process , corrosion resistance, aesthetic appearance ; applicable to all forms of existing cable structures .

( 2 ) the frame with closed cabinet structure, cable and wiring into the side to avoid the physical protection of optical fiber, cable accidental damage . Frame body design uses a modular structure, complete accessories , can be flexibly configured to fight rack installation can be achieved according to the different requirements of users , easy capacity increase .

( 3 ) the top or bottom of the rack by the cable into the cable hole patch fixed the introduction , grounding and protection. Cable and cable from damage in the core , the metal parts and chassis cable insulation , metal-sheathed cable and strengthen the core fixed reliably connected high voltage protective grounding device .

(4) GPX01-A fiber optic distribution boxes ( sub- frame ) of the Big Wheel using welding wire integration module. Stratified rotating module structure , easy management , safe operation. Card installed FC, SC, LC and ST four kinds of adapters, adapter was 30o arrangement that ensures fiber bending radius jump ≥ 40mm, and avoid eye laser burns . The series can be used with jumper wiring boxes accommodating tray while installation.

( 5 ) Jumper by vertical groove alignment and horizontal wireway management, optimize the layout alignment , and to retain access for Erecting a jumper , closing circling over fiber can store extra jumpers.

( 6 ) fiber optic pigtails, jumpers clearly marked .
